Fletching Range

Model: Dimensions: BTU: Watts: RRP*: Tech Sheet:

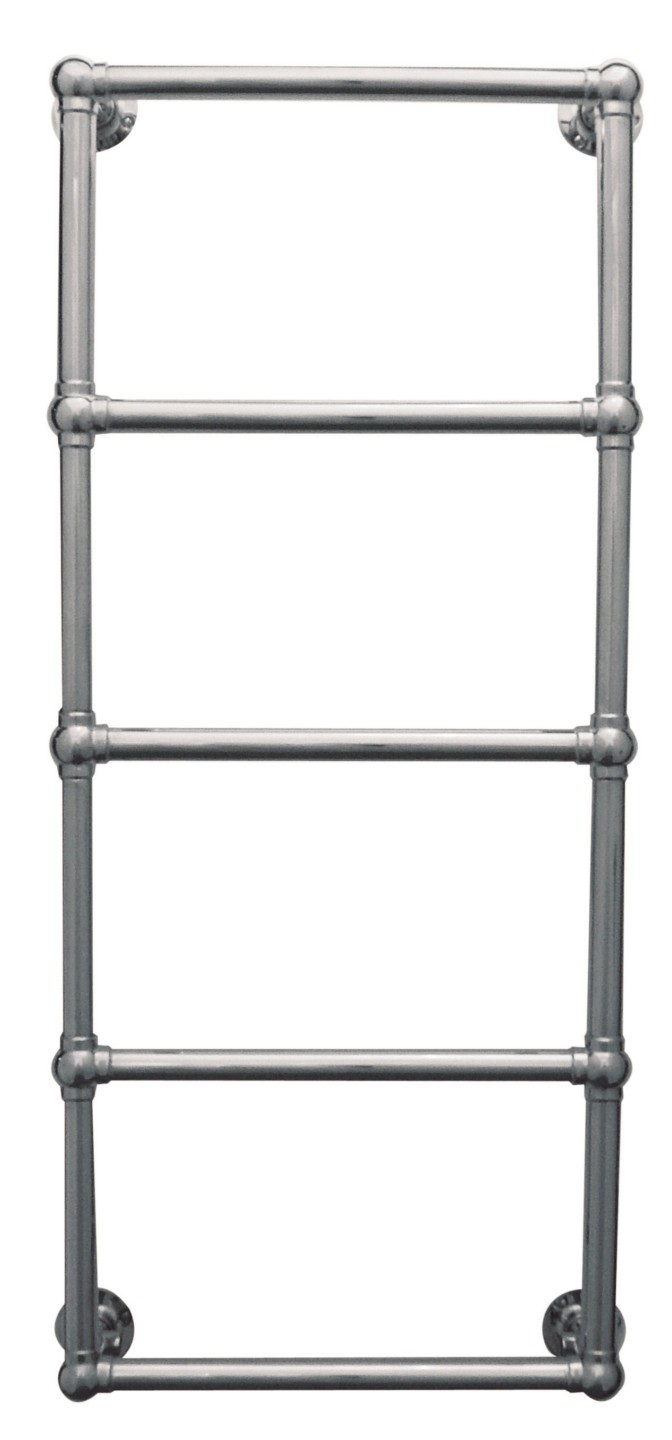

Fletching 1185 1185 x 520mm 1963 576 £689.95 View

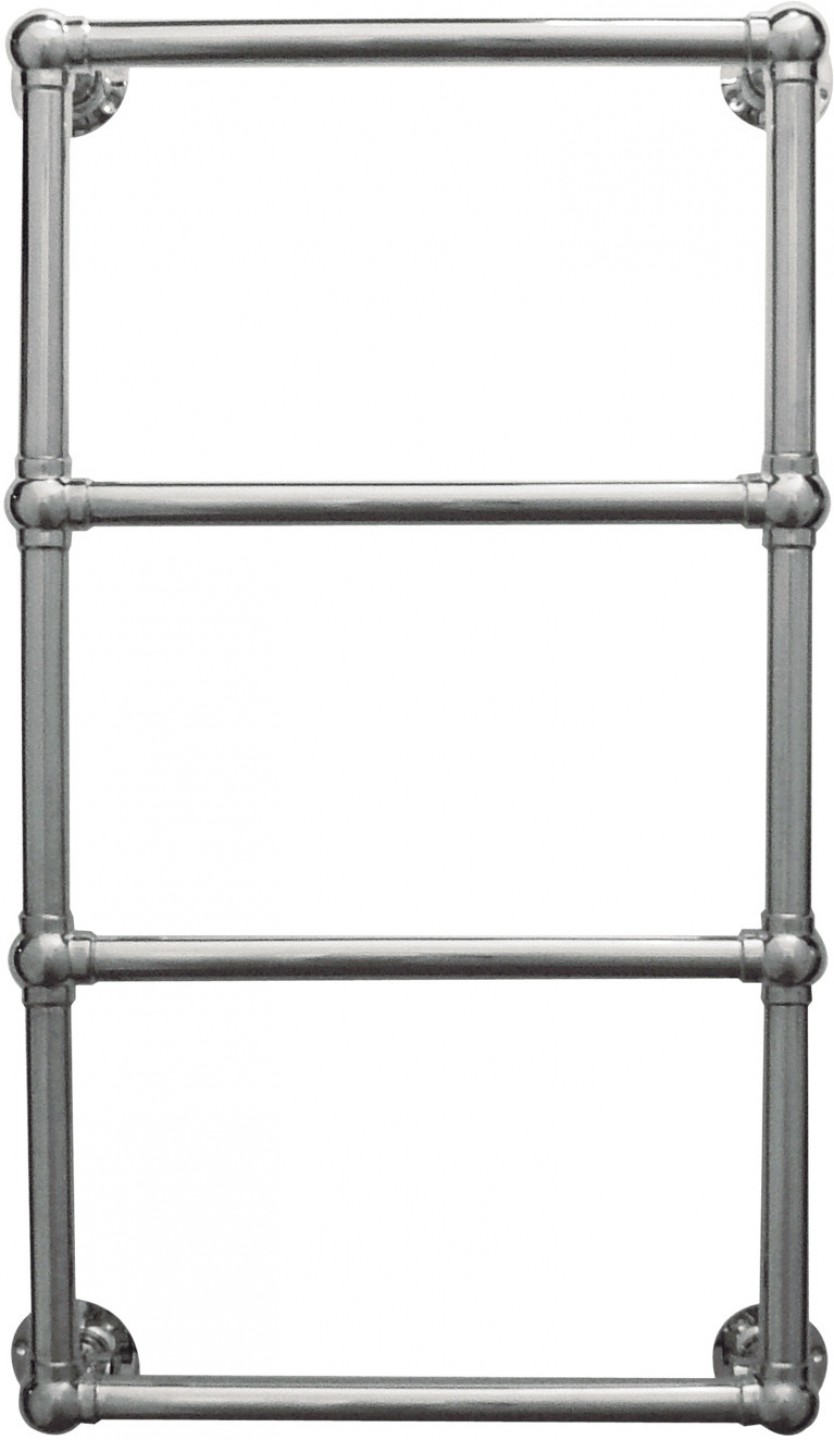

Fletching 910 910 x 520mm 1431 420 £574.95 View

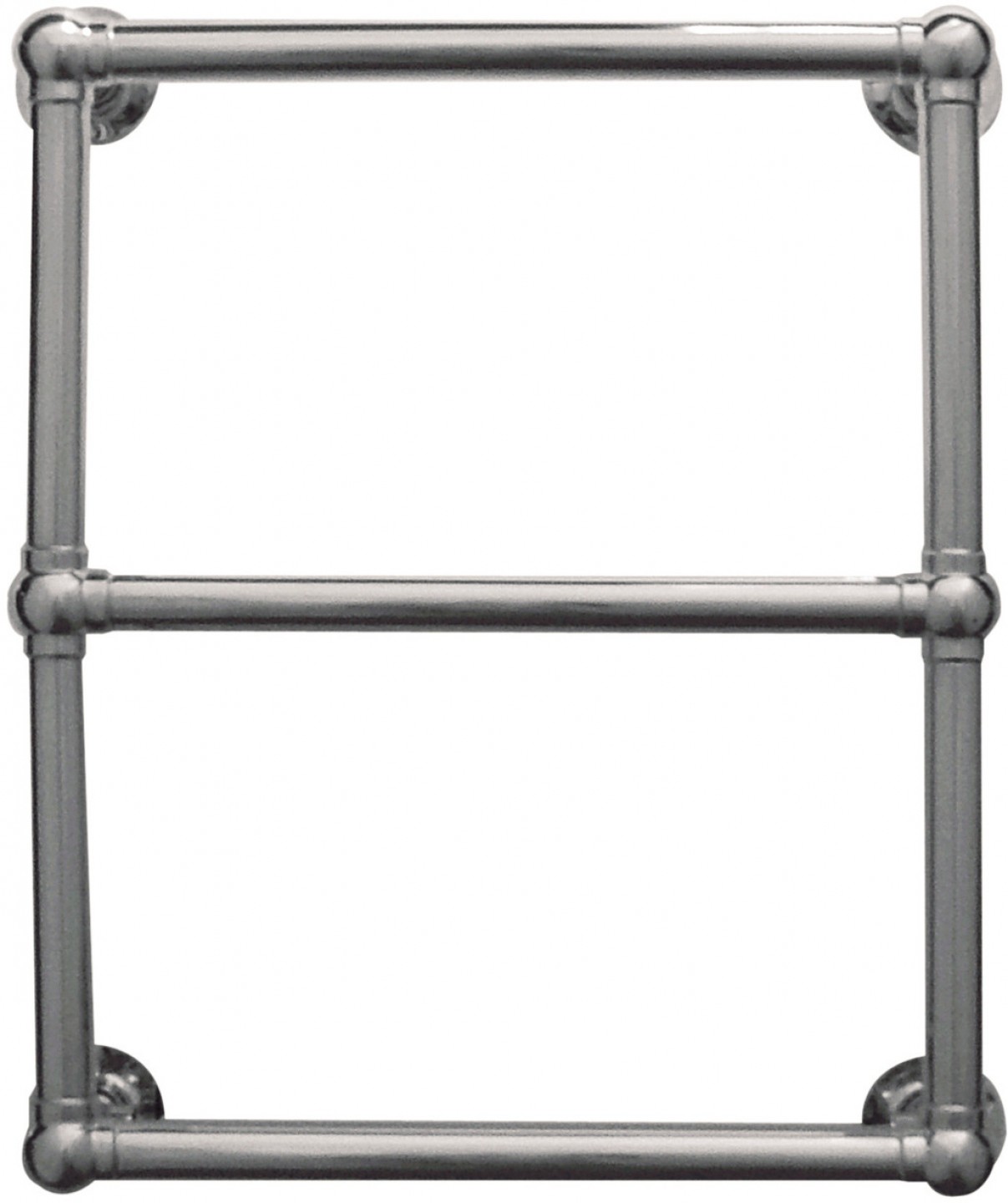

Fletching 635 635 x 520mm 1020 299 £449.95 View

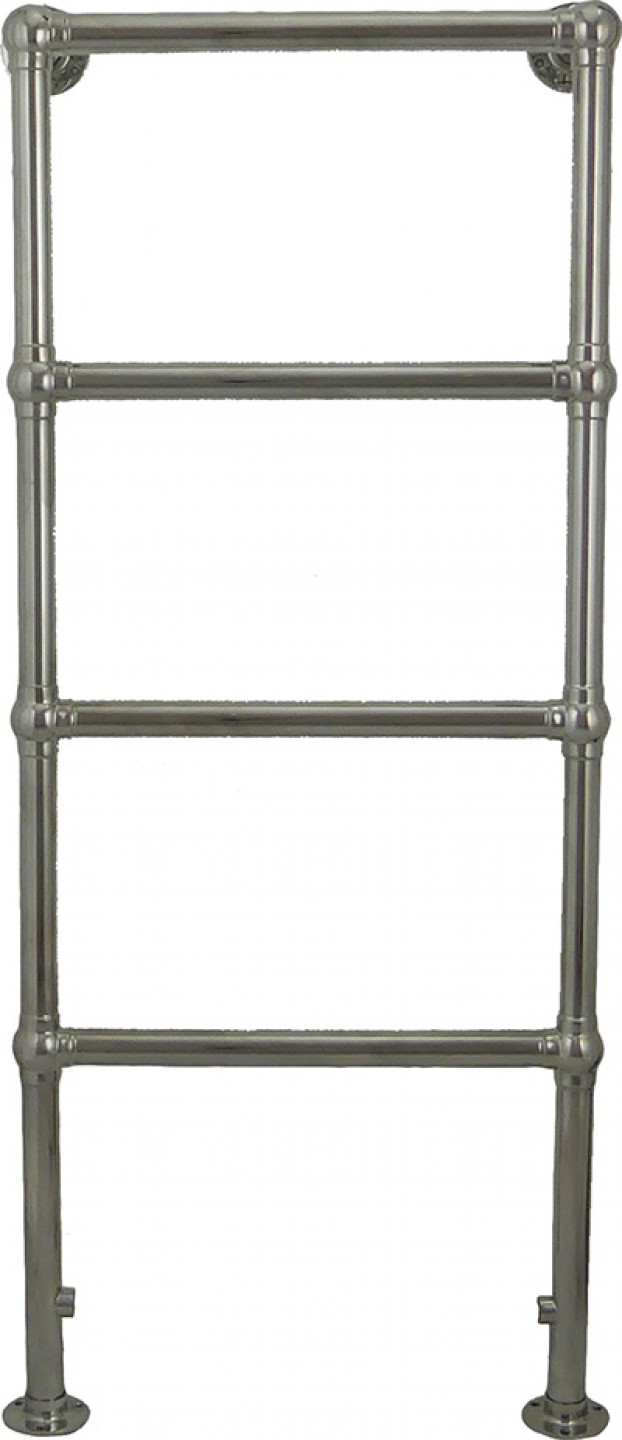

Fletching Floor to Wall 1200 x 520mm 1858 544 £749.00 View
*RRP excludes VAT at the current rate. To view the Fletching in situ Click Here.

Prices and information shown are for central heating version, with polished finish. All models are available as central heating, dual fuel and electric only versions.

PLEASE NOTE: Due to the design of the Fletching floor to wall rail it can only be used with the standard element when having it Electric Only or Dual Fuel.

A satin finish is available to order, please add 30% to the price shown.

Additional Information

Please note the brackets on the Fletching rail are not adjustable. The main image of our Fletching is a picture of one of our customers bathrooms and in this particular installation where the wall is part tiled, they have made up the back of the upper bracket with painted ply/mdf. Should you have a similar installation you will need to do likewise

Pipe Centres: This model has side tappings so the pipe centres will be dependent on the type of valves (when using Solar Angled Valves the pipe centres are 315mm)

Projection: The total projection is 150mm

Brackets: The Fletching comes with its own fitted brackets as standard.

For the Fletching model there is a separate element inlet connection on the bottom right hand side. Please note – electric can be right hand only.

Please click here to see our valves
Please click here to see our electric options
